Loader Cutting Edge & Accessories:
★OEM Replacement or Custom Design
★Carbon Steel (Heat Treated) & Boron Steel (Heat Treated)
★Thickness from 16mm to 100mm
★Weld on Bucket Base Edge: Straight Type & Spade Type
★Bolt on Cutting Edge, End Bit & Segment
★Half Arrow Cutting Edge ( Rolled Steel)
★Bolt on Rear Wear Plate

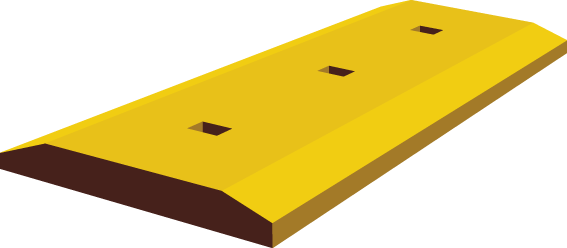

Bolt On Cutting Edge | |||
P/N | Main Dimension (mm) | Holes | Dia. |
1U0601 | 1210*360*30 | 3 | 1" |
1U0593 | 1319*360*30 | 3 | 1-1/4" |
1U0762 | 1406*406*35 | 3 | 1-1/4" |
1U0295 | 1025*280*25 | 3 | 1" |
1U2412 | 1151*360*30 | 3 | 1" |
1U0607 | 1044*280*25 | 3 | 1" |
9W8620 | 1524*254*19 | 4 | 3/4" |
4T9125 | 655*360*35 | 5 | 1-1/4" |
107-3746 | 1179*280*25 | 3 | 1" |
100-6668 | 1379*360*30 | 3 | 1-1/4" |
139-9230 | 1285*360*30 | 3 | 1" |
Bolt On Cutting Edge & Segment | |||
P/N | Main Dimension (mm) | Holes | Dia. |
4T8091 | 160*342*25 | 2 | 1" |
3G6395 | 200*510*35 | 3 | 1-1/4" |
4T8101 | 170*496*30 | 3 | 1" |
4T6695 | 265*280*25 | 2 | 1" |
4T6699 | 270*360*30 | 2 | 1-1/4" |
3G9512 | 175*496*35 | 3 | 1" |
4T6694 | 225*280*25 | 2 | 1" |
1U0761 | 265*556*40 | 3 | 1-1/4" |
135-8219 | 315*330*45 | 2 | 1-1/4" |
140-7601 | 392*360*30 | 2 | 1" |
100-666 | 293*359*30 | 2 | 1-1/4" |
421-838-1120 | 180*330*30 | 2 | 1" |
421-815-3220 | 278*455*30 | 4 | 7/8" |
421-838-2120 | 290*420*40 | 2 | 1-1/4" |
418-815-1220 | 330*592*30 | 2 | 1" |
425-815-1221 | 330*592*30 | 2 | 1" |
Rear Wear Plate | |||
P/N | Main Dimension (mm) | Holes | Dia. |
6Y3609 | 700*254*35 | 4 | 1" |
109-9215 | 622*254*35 | 4 | 3/4" |
PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to contact with us.
