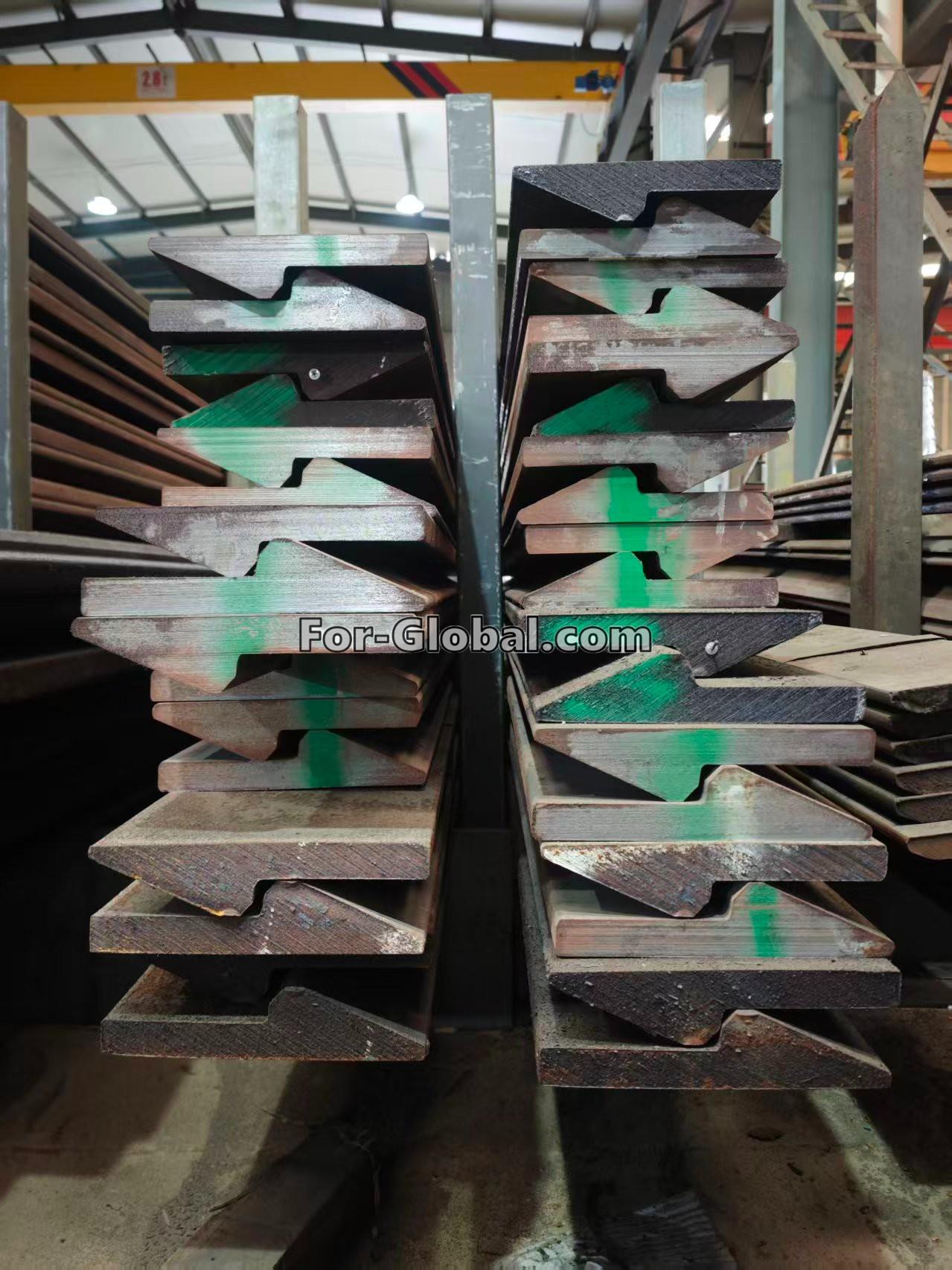

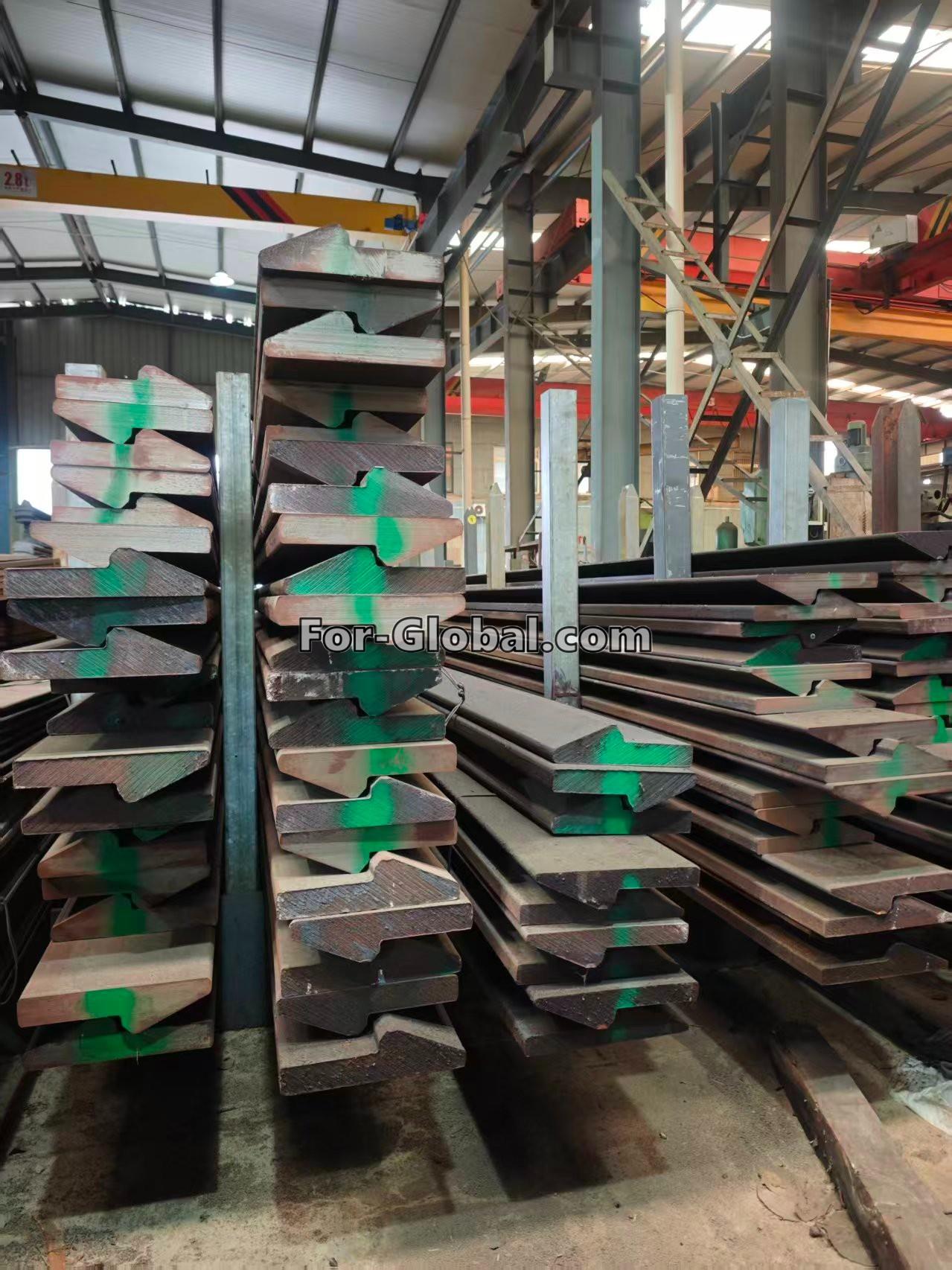

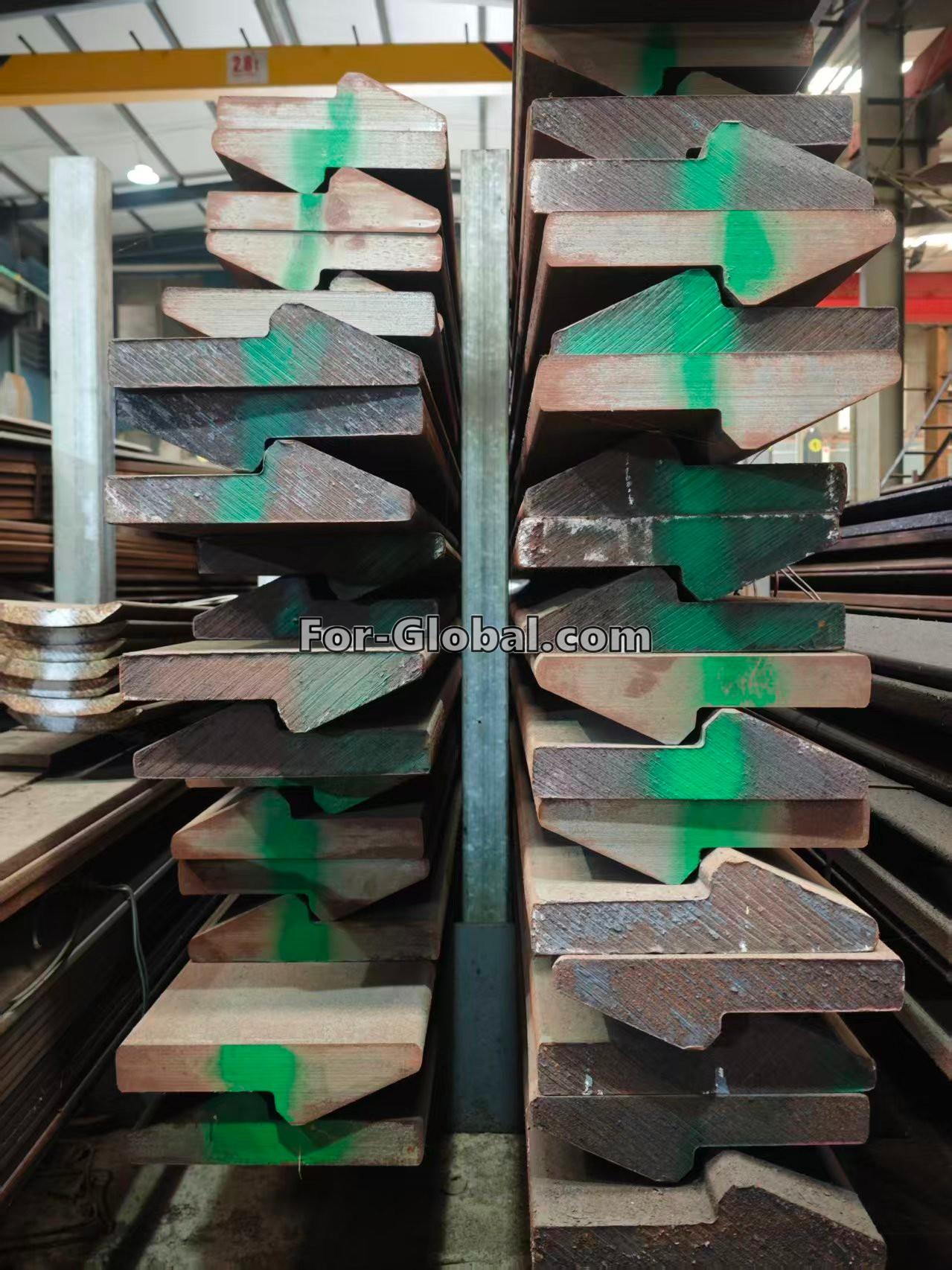

Half Arrow Blades

Half Arrow Blades：
★ HB500 Grade
★ Length 3600-3700mm
★ Dimension 254*40 254*29
Hardness: HB 470 – 530
(after the heat treatment performed on the entire thickness of the profile).

Half Arrow Rolled Profiles:

Indicative mechanical features

◆ Tensile strength (Rm): 1770 N/mm2

◆ Yield point (Re): 1330 N/mm2

◆ Elongation (A5): 9%

◆ Resilience (-40°C): 30 J4

DIMENSIONS (mm)					PROFILF LENGTH(mm)	WEIGHT(kg/m)
A	H	C	B	D	PROFILF LENGTH(mm)	WEIGHT(kg/m)
101	11	21	3	46	610	9.8
151	16	32	6	68	610	21.3
203	19	32	5	127	610	31
203	19	32	5	127	7400	31
254	29	58	10	130	7400	66.2
254	40	69	21	130	7400	88.5

DIMENSIONS (im)					PROFILF LENGTH(ft)	WEIGHT(lb/ft)
A	H	C	B	D	PROFILF LENGTH(ft)	WEIGHT(lb/ft)
4	0.4	0.8	0.1	1.8	20.0	6.6
5.9	0.6	1.3	0.2	2.7	20.0	14.3
8	0.7	1.3	0.2	5.0	20.0	20.8
8	0.7	1.3	0.2	5.0	24.3	20.8
10	1.1	2.3	0.4	5.1	24.3	44.5
10	1.6	2.7	0.8	5.1	24.3	59.5

Part Number	Description	Length (mm)	Width (mm)	Thickness (mm)	Height (mm)	B(mm)
134-1774	Weld-on Half-Arrow	2438	101	11	10	3.5
134-1776	Weld-on Half-Arrow	2438	151	16	16	5.5
8J-8141	Weld-on Half-Arrow	3658	203	19	13	4.0
8J-8176	Weld-on Half-Arrow	3658	254	28	29	11
6Y-2107	Weld-on Half-Arrow	3658	254	40	30	25
109-2696	Weld-on Half-Arrow	5486	254	40	30	25

PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to contact with us.
