★ HB500 Grade
★ Length 6000 mm
★ Dimension 60 - 200
Hardness: HB 470 – 530
(after the heat treatment performed on the entire thickness of the profile).

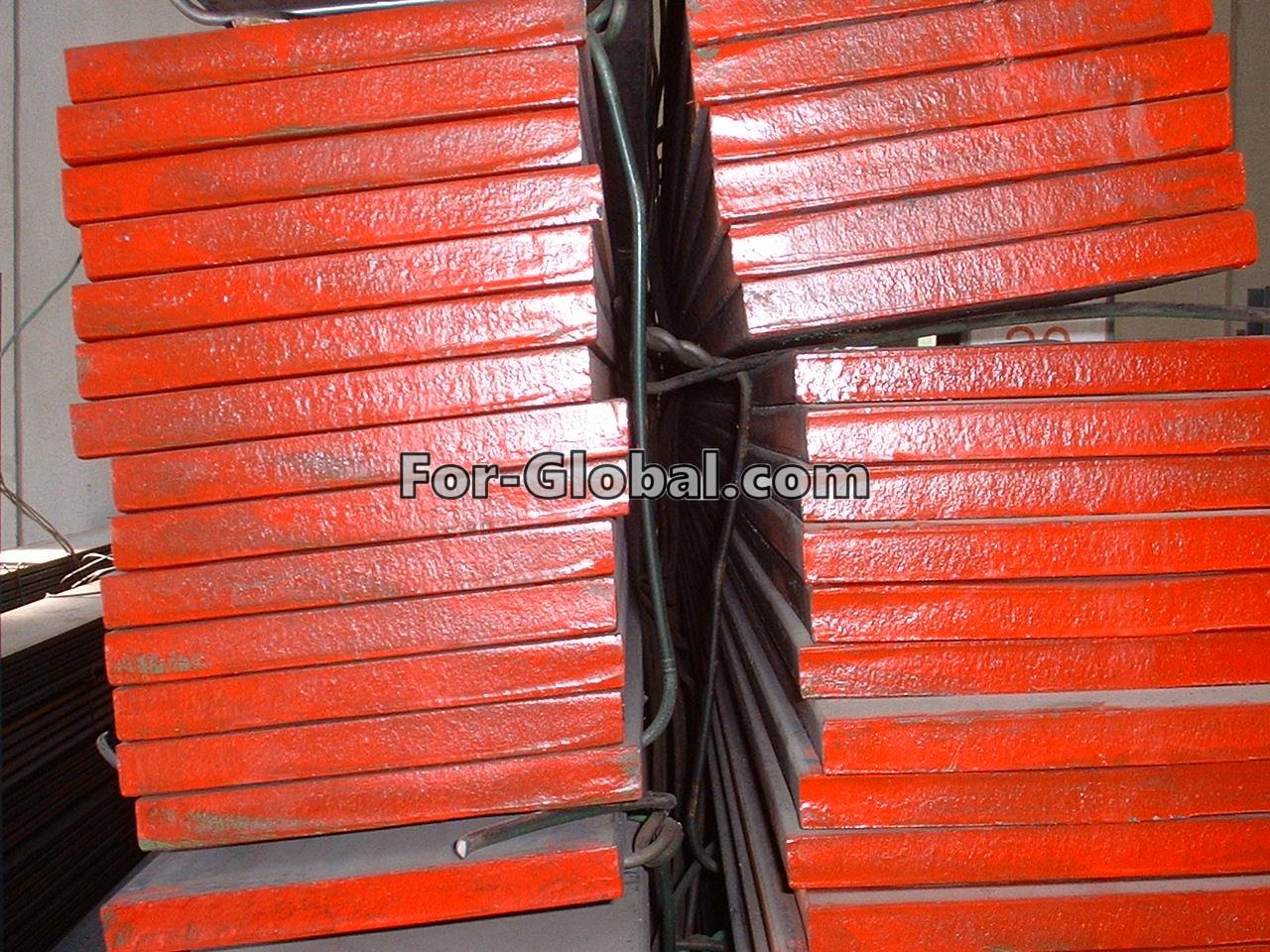

Rectangular Rolled Profiles:
Indicative mechanical features
◆ Tensile strength (Rm): 1770 N/mm2
◆ Yield point (Re): 1330 N/mm2
◆ Elongation (A5): 9%
◆ Resilience (-40°C): 30 J4

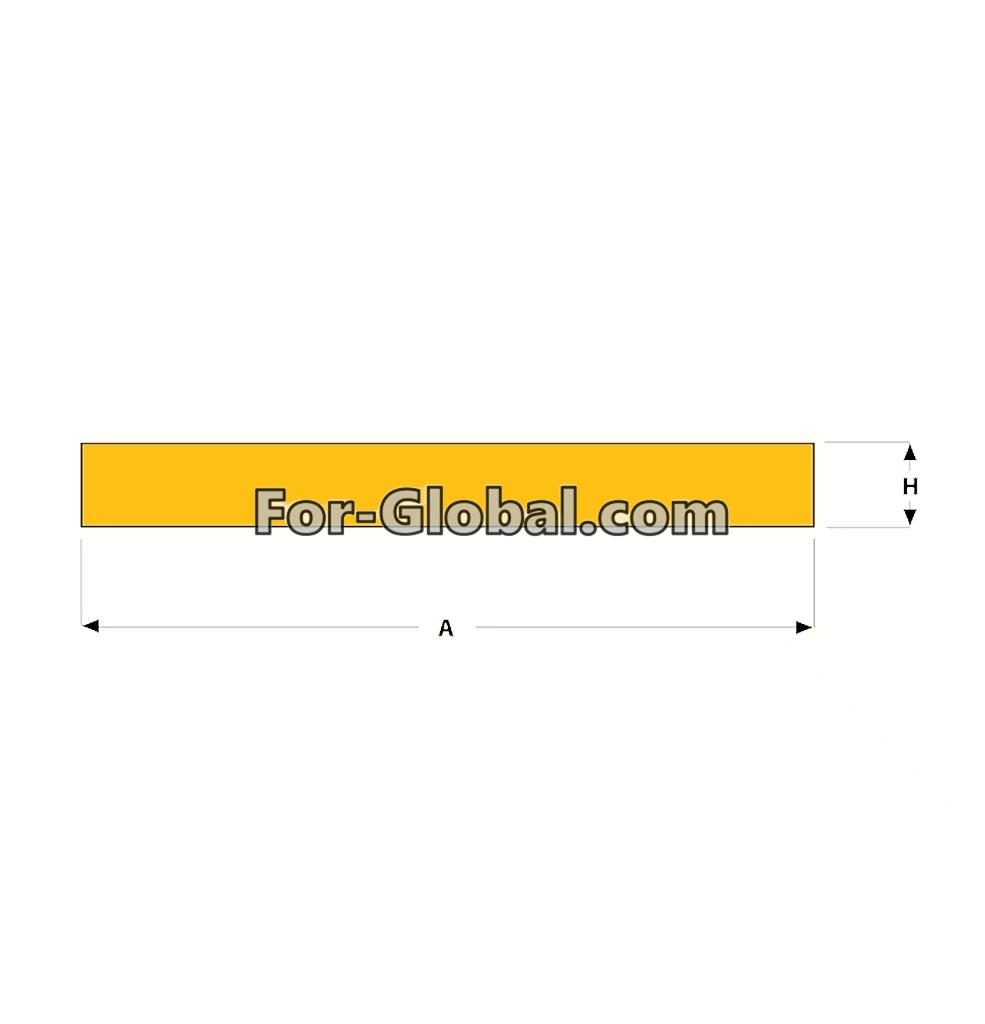

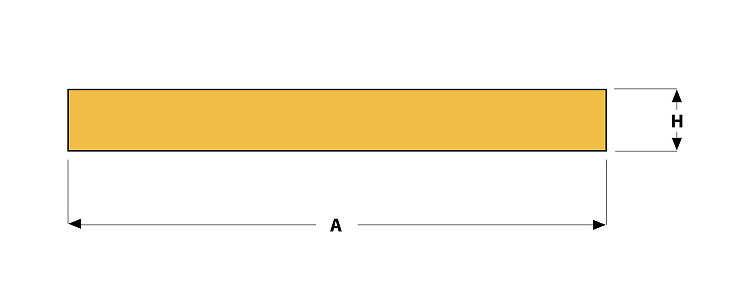

DIMENSIONS (mm) | PROFILF LENGTH(mm) | WEIGHT(kg/m) | |
A | H | ||
60 | 8 | 6000 | 3.8 |
60 | 10 | 6000 | 4.7 |
80 | 10 | 6000 | 6.3 |
80 | 15 | 6000 | 9.4 |
100 | 10 | 6000 | 7.8 |
100 | 12 | 6000 | 9.3 |
100 | 15 | 6000 | 11.7 |
120 | 12 | 6000 | 11.2 |
120 | 15 | 6000 | 14.1 |
120 | 20 | 6000 | 18.7 |
130 | 15 | 6000 | 15.2 |
150 | 15 | 6000 | 17.6 |
150 | 20 | 6000 | 23.4 |
160 | 15 | 6000 | 18.7 |
180 | 20 | 6000 | 28.1 |
200 | 15 | 6000 | 23.4 |
200 | 20 | 6000 | 31.2 |
PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements.
