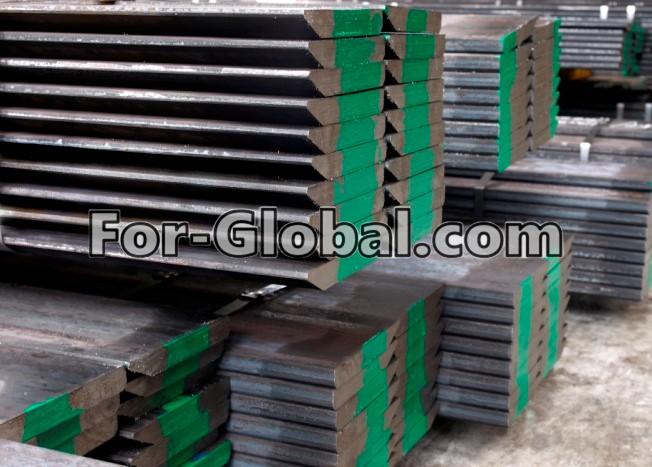

Single Bevel Rolled Profiles

★ NM500
★ Length 6100 mm
★ Dimension 300*40 400*40
Hardness: HB 470 – 530
(after the heat treatment performed on the entire thickness of the profile).

Single Bevel Rolled Profiles:

Indicative mechanical features

◆ Tensile strength (Rm): 1770 N/mm2

◆ Yield point (Re): 1330 N/mm2

◆ Elongation (A5): 9%

◆ Resilience (-40°C): 30 J4

DIMENSIONS (mm)					PROFILF LENGTH(mm)	WEIGHT(kg/m)

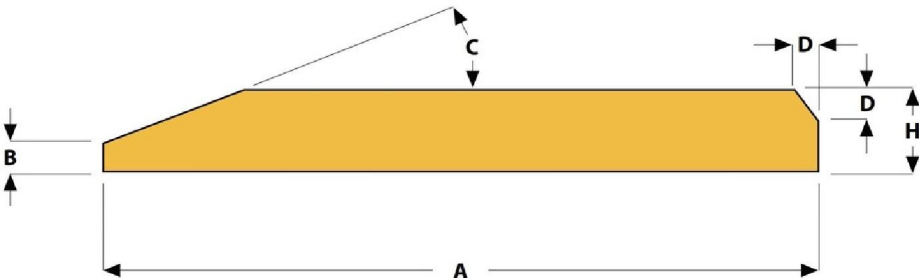

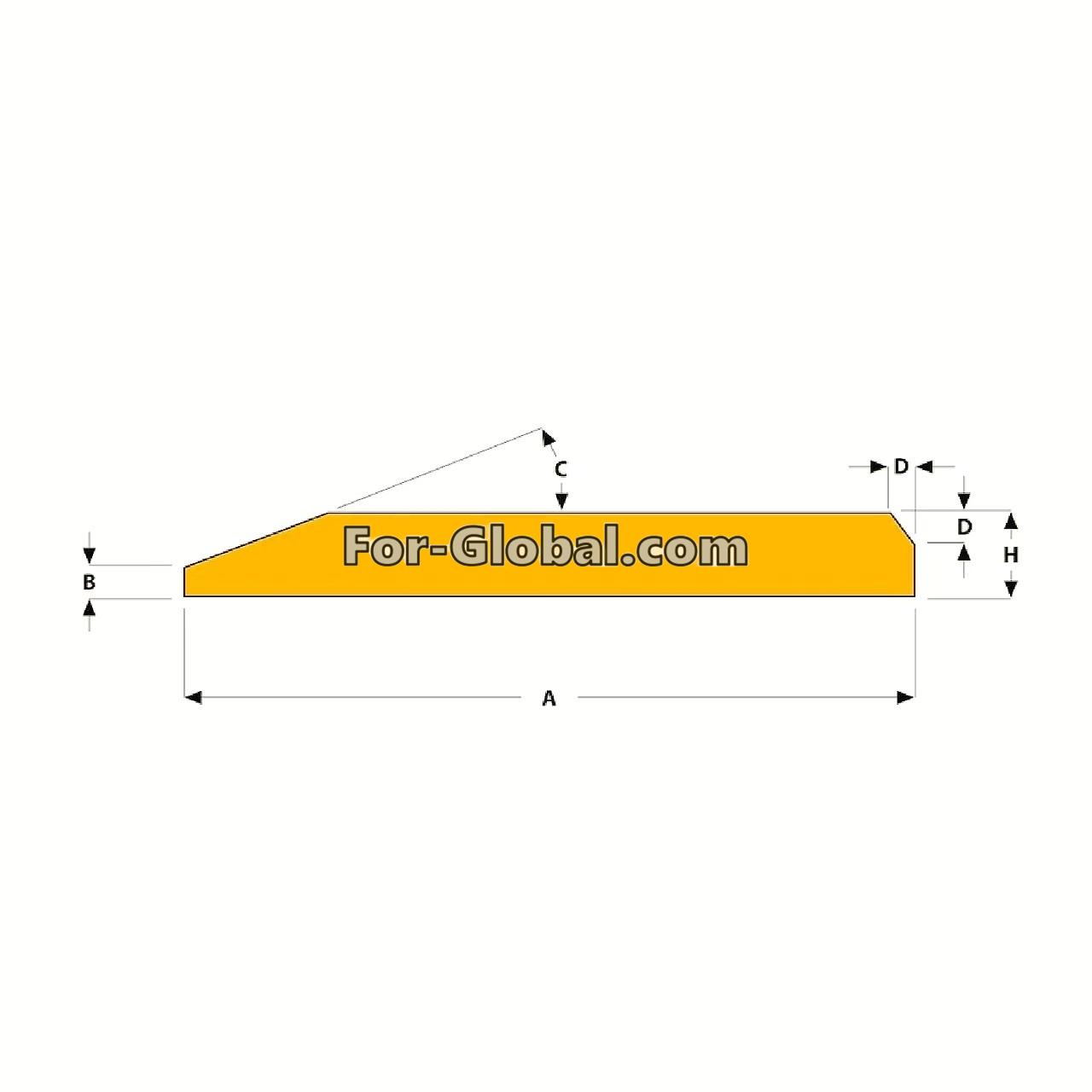

A	H	B	D	C	PROFILF LENGTH(mm)	WEIGHT(kg/m)
300	30	8	10	23°	6100	66.1
300	35	13	10	23°	6100	77.7
300	40	18	10	23°	6100	89.4
300	50	28	10	23°	6100	112.9
400	40	15	12	24°	6100	119.5
400	45	20	12	24°	6100	135.2
400	50	25	12	24°	6100	150.9

DIMENSIONS (in)					PROFILF LENGTH(ft)	WEIGHT(lb/ft)
A	H	B	D	C	PROFILF LENGTH(ft)	WEIGHT(lb/ft)
11.81	1.18	0.31	0.39	23°	20.01	44.42
11.81	1.38	0.51	0.39	23°	20.01	52.21
11.81	1.57	0.71	0.39	23°	20.01	60.08
11.81	1.97	1.10	0.39	23°	20.01	75.87
15.75	1.57	0.59	0.47	24°	20.01	79.30
15.75	1.77	0.79	0.47	24°	20.01	90.85
15.75	1.97	0.98	0.47	24°	20.01	101.41
